Valve control that is more precise and comfortable

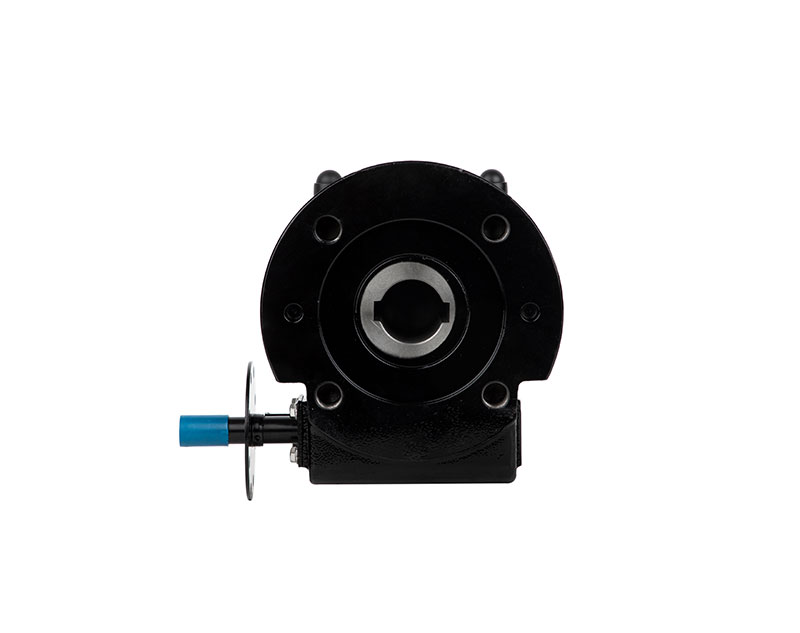

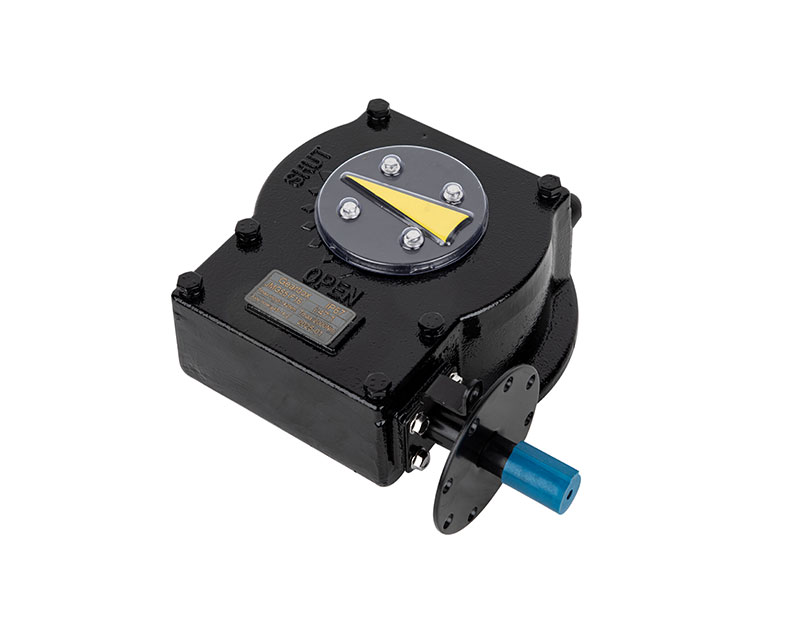

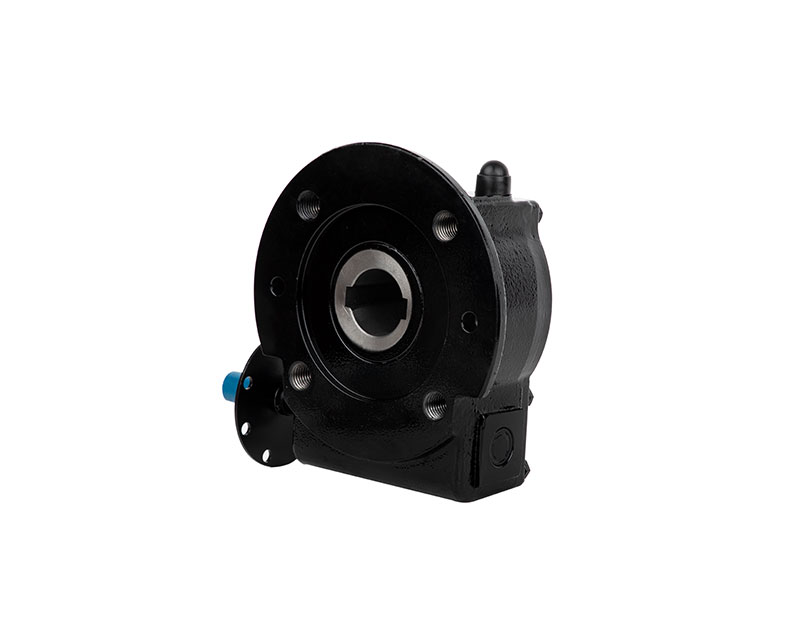

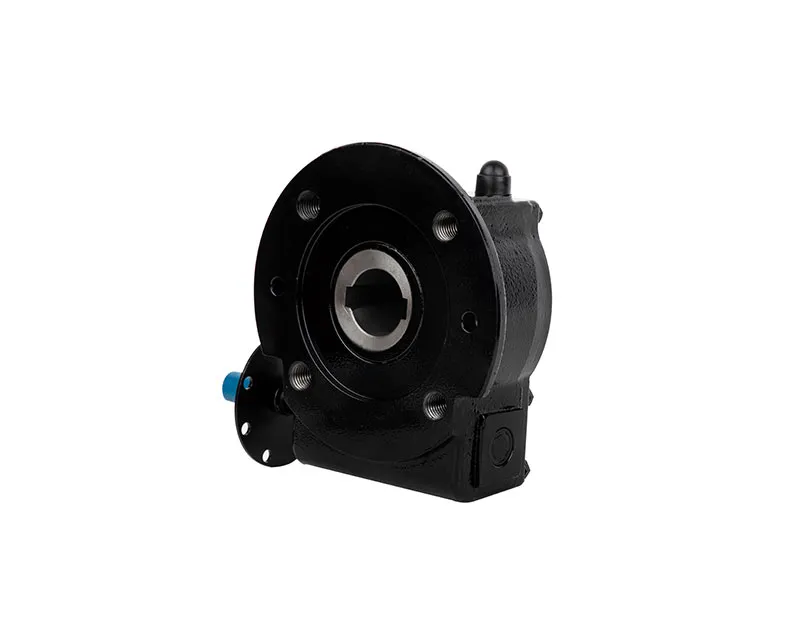

The JMG series rotary valve gearbox with scale indicator is used for 90 degree rotation valves, like ball valve butterfly valve. The significant advantage of this type valve gearbox is that customer can clearly find what degree of valve is in from the scale indicator. Users have the ability to modify the pace ratio in accordance with their actual usage conditions.
CATALOGUE DOWNLOAD

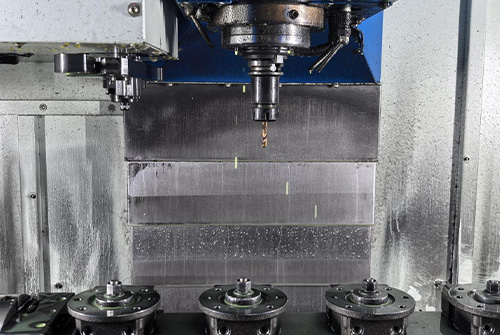

The JMG series rotary valve gearbox with scale indicator utilizes a 40cr material shaft, which is known for its superior strength. Additionally, the surface has been subjected to carbonization treatment, which significantly enhances its overall strength and ensures its functionality in challenging operating conditions. JIMAI offers a broader temperature range of -45°C to 180°C for use. The gear contact ratio of the JMG series rotary valve gearbox with scale indicator is exceptional, and JIMAI guarantees a process difference of no more than 0.1mm.Use of our gearbox can facilitate valve control that is more precise and comfortable.
Torque range: 260N.m to 150000Nm

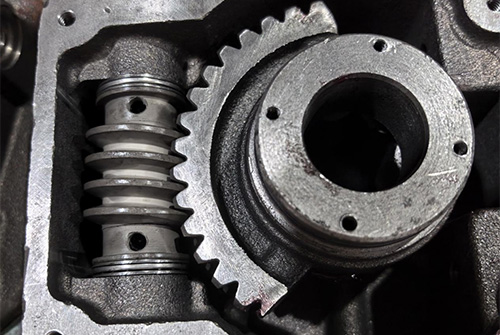

Capable of guaranteeing a gear contact ratio that is greater than that of a 0.1mm disparity in the process.

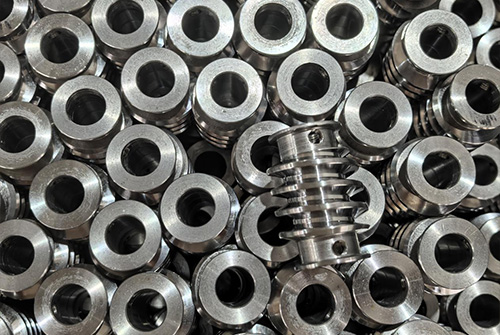

Use a ASTM5140 material for the shaft, which has a significantly higher strength.
The surface has been subjected to carbonization treatment.
Unit featuring high efficiency reduction
90° rotation (±5°)
Self-locking device that is stable

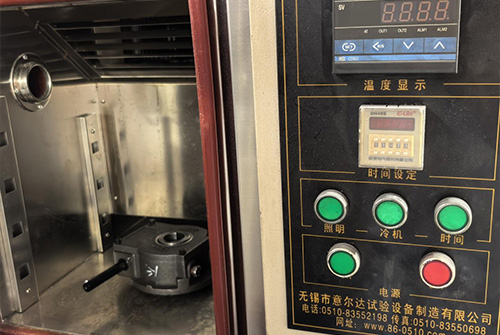

Temp range: -45℃ to 180℃, providing a broader temperature range for use
Weatherproof level: IP67 (optional: IP68)

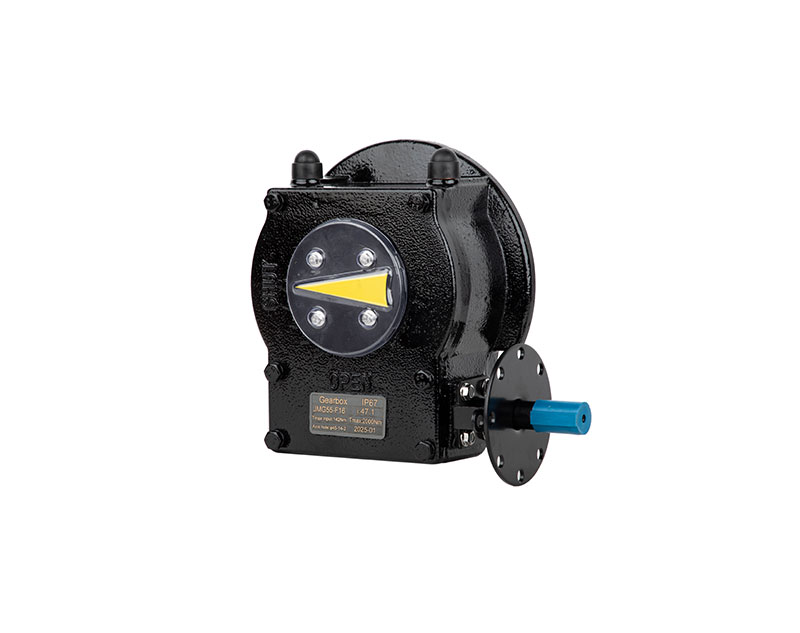

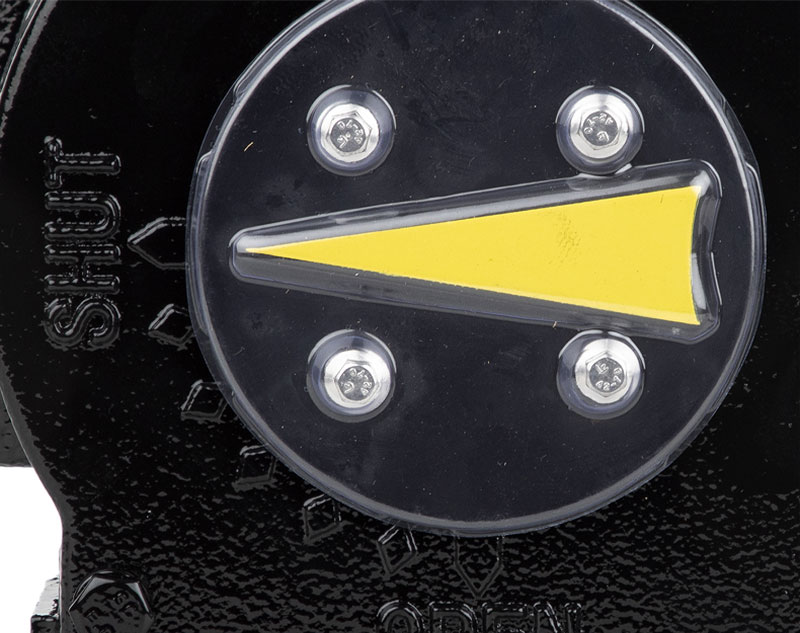

Every 15 degree a scale, customer can directly see what degree is.
If customer want to adjust the valve in some certain degree, our product can help to meet the requirements.
|

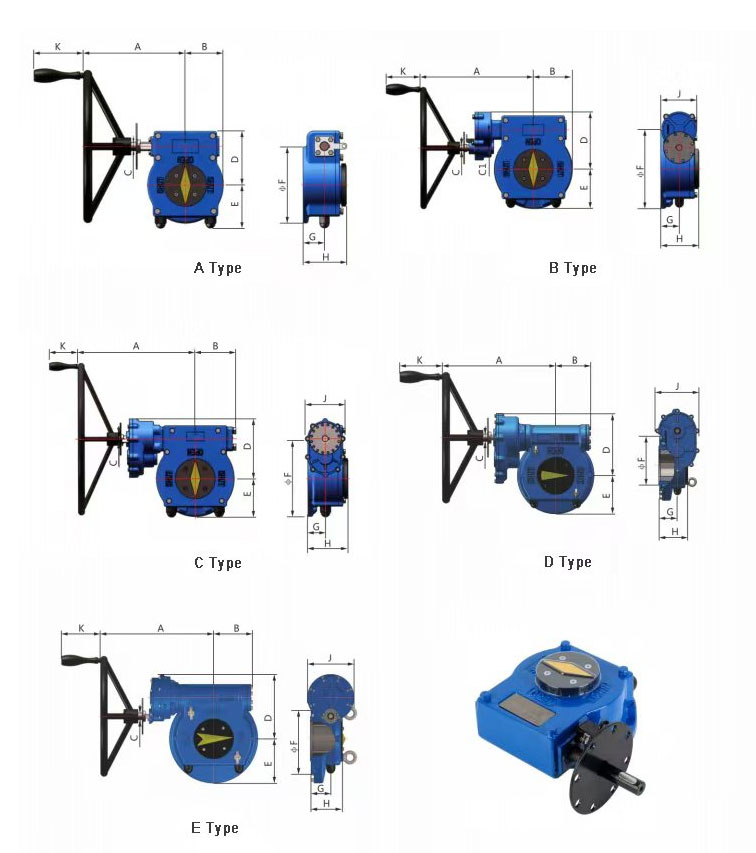

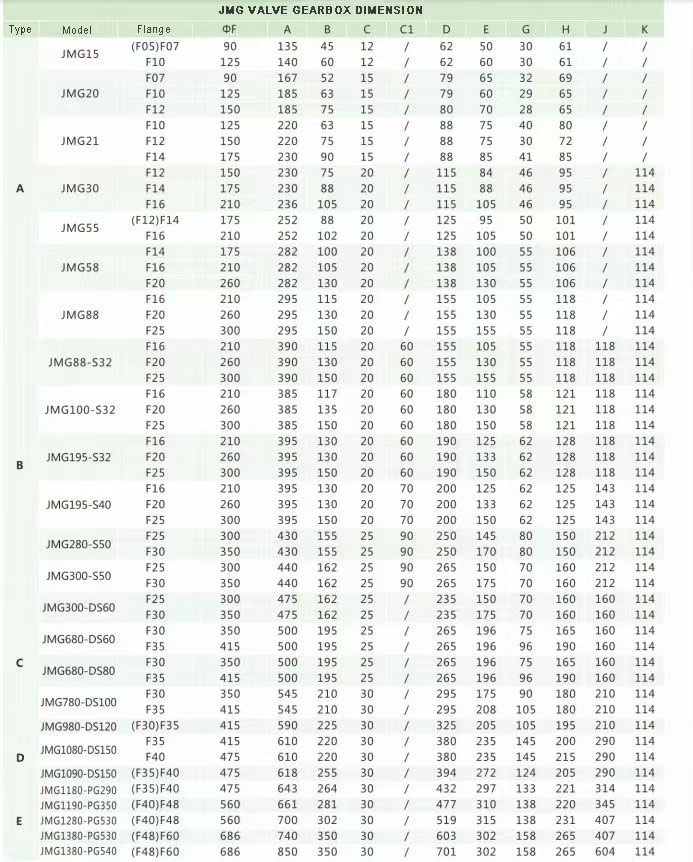

Model |
Speed ratio |
Input torque |
Output torque |
Flange Size |
Maximum stem diameter |
Maximum install height |
Handwheel diameter |
|
JMG15 |
27 |
32 |
260 |
F05/F07/F10 |
20 |
55 |
200 |
|
JMG20 |
37 |
47 |
520 |
F07/F10/F12 |
28 |
58 |
250 |
|
JMG21 |
38 |
75 |
850 |
F10/F12/F14 |
36 |
63 |
300 |
|
JMG30 |
40 |
113 |
1350 |
F12/F14/F16 |
48 |
85 |
350 |
|
JMG55 |
47 |
142 |
2000 |
(F12)/F14/F16 |
53 |
90 |
400 |
|
JMG58 |
55 |
152 |
2500 |
F14/F16/F20 |
62 |
95 |
500 |
|
JMG88 |
61 |
164 |
3000 |
F16/F20/F25 |
65 |
105 |
500 |
|
JMG88-S32 |
167 |
90 |
4200 |
F16/F20/F25 |
65 |
105 |
500 |
|
JMG100-S32 |
177 |
111 |
5500 |
F16/F20/F25 |
72 |
110 |
500 |
|
JMG195-S32 |
167 |
139 |
6500 |
F16/F20/F25 |
80 |
115 |
600 |
|
JMG195-S40 |
208 |
129 |
7500 |
F16/F20/F25 |
80 |
115 |
600 |
|
JMG280-S50 |
280 |
108 |
8500 |
F25/F30 |
90 |
136 |
600 |
|
JMG300-S50 |
290 |
117 |
9500 |
F25/F30 |
95 |
145 |
600 |
|
JMG300-DS60 |
348 |
117 |
11000 |
F25/F30 |
95 |
145 |
600 |
|
JMG680-DS60 |
372 |
139 |
14000 |
F25/F30/F35 |
115 |
148 |
600 |
|
JMG680-DS80 |
519 |
121 |
17000 |
F25/F30/F35 |
115 |
148 |
600 |
|
JMG780-DS100 |
587 |
145 |
23000 |
F30/F35 |
125 |
157 |
600 |
|
JMG980-DS120 |
731 |
152 |
30000 |
F30/F35 |
140 |
180 |
700 |
|
JMG1080-DS150 |
1110 |
116 |
36000 |
F30/F35/F40 |
145 |
190 |
700 |
|
JMG1090-DS150 |
1453 |
111 |
45000 |
F35/F40 |
160 |
190 |
700 |
|
JMG1180-PG290 |
1658 |
123 |
55000 |
F35/F40/F48 |
180 |
205 |
700 |
|
JMG1190-PG350 |
2228 |
116 |
70000 |
F40/F48 |
200 |
210 |
700 |
|
JMG1280-PG530 |
2769 |
120 |
90000 |
F40/F48 |
210 |
225 |
700 |
|
JMG1380-PG530 |
3621 |
127 |
120000 |
F48/F60 |
260 |
257 |
700 |
|
JMG1380-PG540 |
3655 |
152 |
150000 |
F48/F60 |
260 |
257 |
700 |
| Nos | Part name | Standard | |||
| Material | GB | JIS | ASTM | ||
| 1 | Worm Box | Ductile iron | QT450-10 | FCD-450 | 65-45-12 |
| 2 | Worm gear | Ductile iron | QT500-7 | FCD-500 | 80-55-06 |
| 3 | Box cover | Ductile iron | QT450-10 | FCD-450 | 65-45-12 |
| 4 | Worm | Alloy steel | 40Cr | Scr440 | ASTM5140 |
| 5 | Shaft | Alloy steel | 40Cr | SCr440 | ASTM5140 |
| 6 | Indicator | Aluminum alloy | YL112 | ADC12 | SG100B |
| 7 | Sealing plate | BUNA-N | NBR | NBR | NBR |
| 8 | Thrust bearing | Bearing steel | GCr15 | SUJ2 | A295-52100 |
| 9 | Bearing | Carbon steel | 20+PTFE | S20C+PTFE | A576-1020+PTFE |
| 10 | Oil seal | BUNA-N | NBR | NBR | NBR |
| 11 | Cover oil seal | BUNA-N | NBR | NBR | NBR |
| 12 | O－ring | BUNA-N | NBR | NBR | NBR |
| 13 | Hexagon bolt | Alloy steel | 45 | SCM435 | A322-4135 |
| 14 | Screw | Alloy steel | 45 | SCM435 | A322-4135 |
| 15 | Hexagon nut | Alloy steel | 45 | SCM435 | A322-4135 |
| 16 | Hexagon nut | Carbon steel | 45 | S45C | A576-1045 |
| 17 | Nut cover | BUNA-N | NBR | NBR | NBR |
| 18 | Set screw | Alloy steel | 45 | SCM435 | A322－4135 |
| 19 | Flat key | Carbon steel | 45 | S45C | A576-1045 |
