What is a Bevel Gear Gearbox?

In the realm of mechanical power transmission, bevel gear gearboxes stand out as a critical component for applications requiring precise torque transfer between intersecting axes. These specialized gear systems are engineered to transmit power efficiently while accommodating angular misalignment, making them indispensable in industries ranging from automotive manufacturing to heavy machinery. This article explores the fundamentals of bevel gear gearboxes, their design principles, applications, and advantages.

Understanding Bevel Gears

A bevel gear is a toothed rotating machine element with conically shaped teeth designed to mesh with another bevel gear. Unlike parallel-axis gears (e.g., spur or helical gears), bevel gears operate on intersecting shafts, typically at 90-degree angles. This unique configuration allows them to redirect rotational motion and torque between perpendicular axes, making them ideal for applications where space constraints or directional changes are critical.

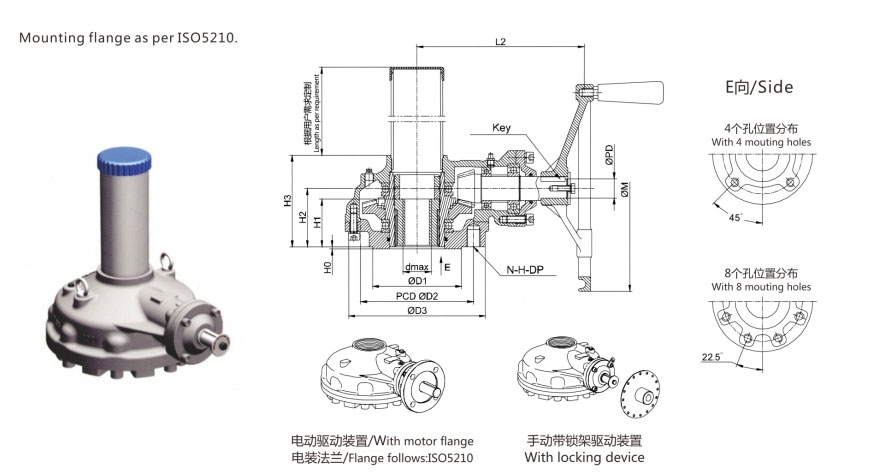

A bevel gear gearbox integrates these gears into a compact housing, combining them with bearings, shafts, and lubrication systems to create a robust power transmission solution.

Types of Bevel Gears in Gearboxes

1. Straight Bevel Gears:

   • Feature straight teeth tapering toward the apex of the cone.

   • Simple design, cost-effective, but generate higher noise at high speeds.

   • Common in low-speed applications (e.g., hand drills, conveyor systems).

2. Spiral Bevel Gears:

   • Curved teeth with a spiral angle for gradual engagement.

   • Reduced noise, higher efficiency, and improved load distribution.

   • Widely used in automotive differentials and aerospace systems.

3. Zerool Bevel Gears:

   • Hybrid design combining elements of straight and spiral bevel gears.

   • Smooth operation with lower axial thrust forces.

4. Hypoid Gears:

   • Similar to spiral bevel gears but with non-intersecting axes.

   • Higher torque capacity and quieter operation.

   • Found in high-performance automotive drivetrains.

Key Applications of Bevel Gear Gearboxes

Bevel gear gearboxes are versatile solutions for industries requiring angular power transmission:

• Automotive: Differential systems to distribute torque between wheels.

• Aerospace: Helicopter rotor systems and flight control mechanisms.

• Industrial Machinery: Conveyors, printing presses, and robotics.

• Energy: Wind turbine pitch control and hydropower systems.

• Marine: Steering mechanisms and propulsion systems.

• Robotics: Precision motion control in articulated arms.

Advantages of Bevel Gear Gearboxes

1. High Efficiency: Minimal energy loss due to optimized tooth engagement.

2. Compact Design: Ideal for space-constrained environments.

3. Angular Flexibility: Accommodate shaft angles from 45° to 120°.

4. Durability: Robust construction for heavy-load and high-torque applications.

5. Smooth Operation: Spiral and hypoid variants reduce vibration and noise.

Selecting the Right Bevel Gear Gearbox

When choosing a bevel gear gearbox, consider:

• Load Requirements: Torque, speed, and shock loads.

• Operating Environment: Temperature, contamination, and lubrication needs.

• Mounting Space: Compact vs. modular designs.

• Precision Needs: Backlash tolerance and positional accuracy.

• Maintenance: Sealed units vs. serviceable configurations.

Conclusion

Bevel gear gearboxes are a cornerstone of modern mechanical engineering, enabling efficient power transmission across diverse industries. Their ability to handle angular misalignment, coupled with their compact and durable design, makes them a go-to solution for engineers tackling complex motion control challenges. Whether optimizing a vehicle’s differential or enhancing the precision of industrial robotics, understanding the capabilities of bevel gear systems is key to unlocking peak performance in your applications.

For tailored solutions, consult with a trusted gearbox manufacturer to select a configuration that aligns with your operational demands.

This technical overview underscores the importance of bevel gear gearboxes in driving innovation across sectors. By leveraging their unique geometry and engineering versatility, industries continue to push the boundaries of efficiency and reliability.
