Product Description

Nodular cast iron is more malleable, resilient, and durable than conventional grey cast iron. In comparison to grey cast iron, nodular cast iron exhibits a tensile strength that is equivalent to or greater than that of steel. Furthermore, nodular cast iron possesses a high fatigue strength, which enables it to continue functioning effectively in the presence of continuous or repetitive stress without the risk of failure. The remarkable resistance to wear and corrosion of nodular cast iron further enhances its versatility. JIMAI's in-house processing of the housing and bevel gear significantly ensures high quality in comparison to other providers. Furthermore, the BA series bevel gearbox can be equipped with an electric actuator, which simplifies operation in comparison to manual operation.

Parameters

Type	Model	Para
		Technical Parameters									Hand wheel
		Standarc flange	Optional Mounting	Ratio	Input Nm	Rating Qutput Nm	M.A. ±10%	Max Stemdmax mm	Max.Thrust KN	Weight Kg	Hand wheel
		Standarc flange	Optional Mounting	Ratio	Input Nm	Rating Qutput Nm	M.A. ±10%	Max Stemdmax mm	Max.Thrust KN	Weight Kg	M
A	BA-0000	F10	-	2.5:1	105	220	2.1	22	75	9	250
	BA-000	F12	F10	3:1	140	350	2.5	28	113	12	250
	BA-00	F14	F12	3:1	220	550	2.5	36	127	18	300
	BA-0	F16	F14	3.6:1	290	900	3.1	42	141	23	300
	BA-01	F20	F14-F16-F25	4.1:1	345	1200	3.5	50	190	35	400
	BA-1	F25	F16-F20	4.5:1	475	1800	3.8	50	268	45	460
	BA-2	F30	F25	5.2:1	640	2800	4.4	60	308	90	520
	BA-3	F35	F25-F30	5.7:1	730	3500	4.8	80	402	143	600
	Base Part					External Part
	D1	P.C.D		D3	H0	H1	H2	H3	L2	PD	Key
	D1	D2	N-H-DP	D3	H0	H1	H2	H3	L2	PD	Key
	70	102	4-M10-15	125	2	47	70	104	198	26	8
	85	125	4-M12-18	150	3	49	70	113	207	26	8
	100	140	4-M16-24	175	3	58	78	124	238	28	8
	130	165	4-M20-30	210	3	69	85	133	255	28	8
	140	205	8-M16-24	250	4	69	87	145	276	32	10
	200	254	8-M16-24	295	4	78	94	162	311	32	10
	230	298	8-M20-30	350	4	103	133	208	390	32	10
	260	356	8-M30-45	415	5	146	149	246	442	38	10

No.	Parts Name	Material	GB material number	ASTM Materialnumber
1	Bolts	Carbon Steel	GB/T70 8.8	ASTM A29M-1045
2	Base	Carbon Steel/Ductile iron	ASTM A216 WCB/ GB/T12227 QT450-10	ASTM A216 WCB/ ASTM A53665-45-12
3	Sealing gasket	Carbon Steel	GB/T5783 8.8	ASTM A29M-1045
4	O-ring	Rubber	GB/T3452.1NBR	NBR
5	Bearing	Alloy Steel	GB/T18254 Gcr15	ASTM A295-52100
6	Bevel gear	Carbon Steel	GB/T699 45#	ASTMA29M-1045
7	Drive Sleeve	Ductile iron	GB/T12227 QT450-10	ASTM A536 65-45-12
8	Housing	Carbon Steel/Ductile iron	ASTM A216 WCB/ GB/T12227 QT450-10	ASTM A216WCB/ ASTM A536 65-45-12
9	Stem Nut	Brass	GB/T1176 H62	ASTM C85500
10	Lock nut	Carbon Steel	GB/T700 Q235	ASTM A29M-1020
11	Grease Nipple	Carbon Steel	GB/T700 Q235	ASTM A29M-1020
12	PinionGear	Carbon Steel	GB/T699 45#	ASTM A29M-1045
13	Keys	Carbon Steel	GB/T699 45#	ASTM A29M-1045
14	Collar	Carbon Steel	GB/T700 Q235	ASTM A29M-1020
15	Bearing	Alloy Steel	GB/T18254 Gcr15	ASTM A295-52100
16	Snap Ring	Carbon Steel	GB/T93 65Mn	ASTM A29-1566
17	Gland Cover	Carbon Steel/Ductile iron	ASTM A216 WCB/ GB/T12227 QT450-10	ASTM A216 WCB/ ASTM A536 65-45-12
18	Handwheel indicator	Carbon Steel	GB/T700 Q235	ASTM A29M-1020

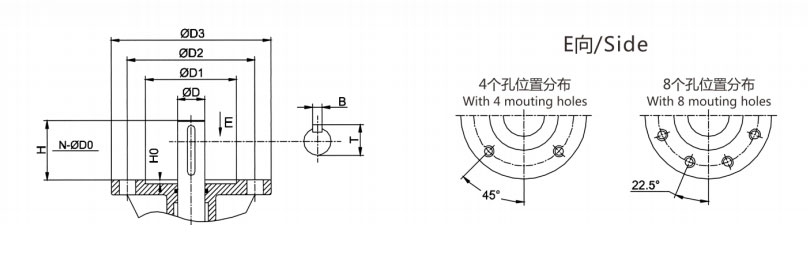

Flange connection to ISO5210

Flange sizes for connecting with actuator according to ISO5210
Motor model	D3	D2	D1XH0	N-D0	D	B	H	T
F10	125	102	70*3	4-12	20	6	45	22.5
F14	175	140	100*4	4-18	30	8	65	33
F15	210	165	130*5	4-22	30	8	65	33
F15	210	165	130*5	4-22	40	12	80	43
F25	300	254	200*5	8-16	40	12	80	43
F25	300	254	200*5	8-16	50	14	100	53.5
F30	350	298	230*5	8-22	50	14	100	53.5
F30	350	298	230*5	8-22	60	18	120	64

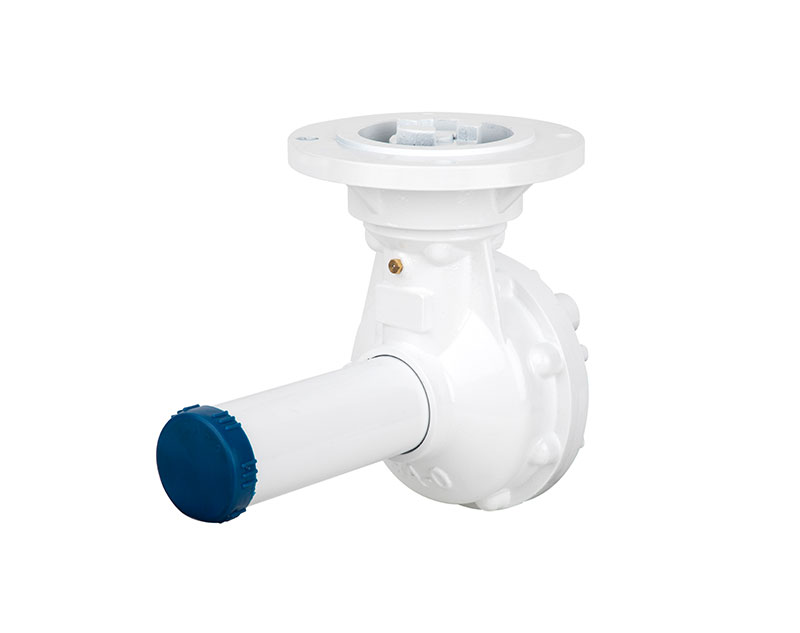

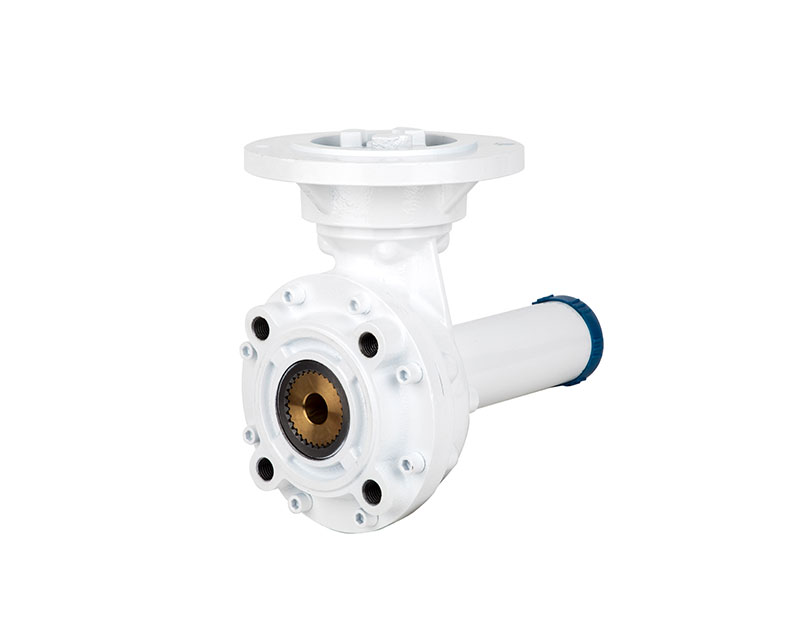

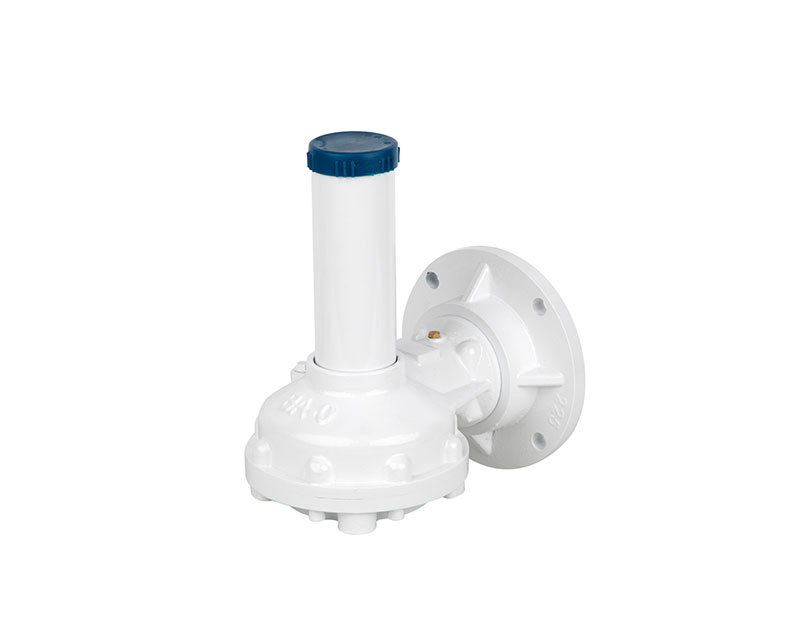

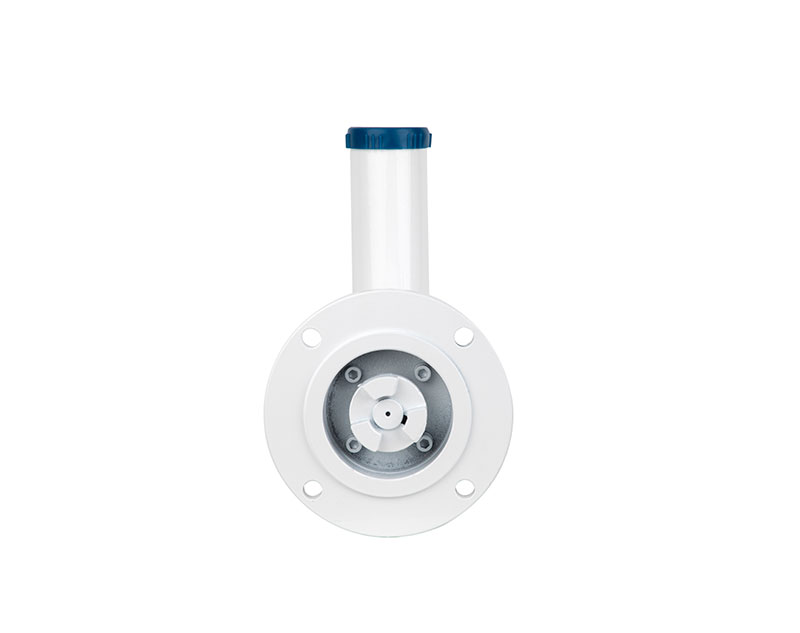

BA Series Bevel Gearbox With Electric Actuator
