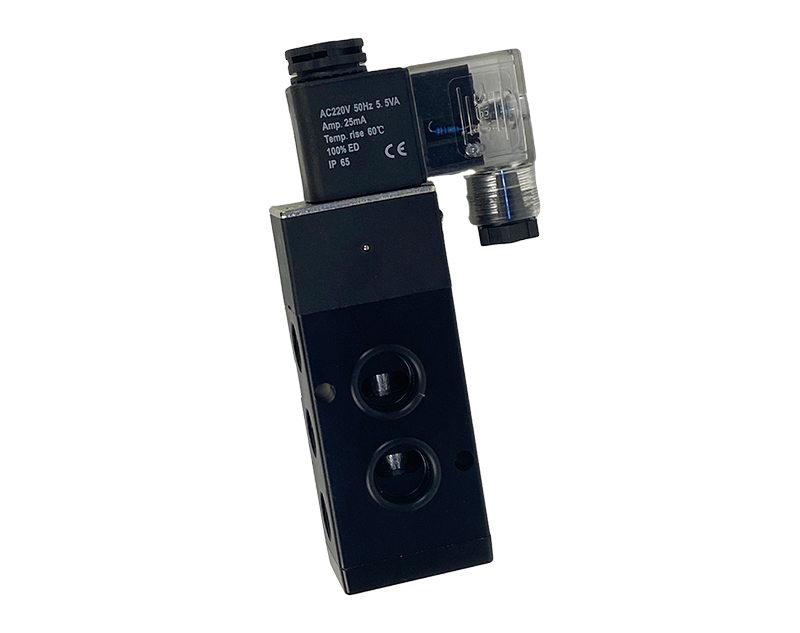

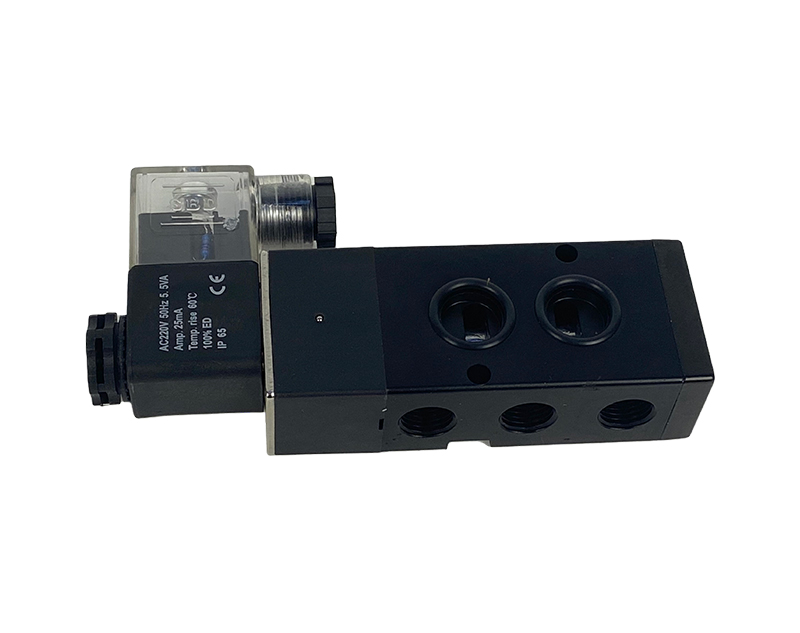

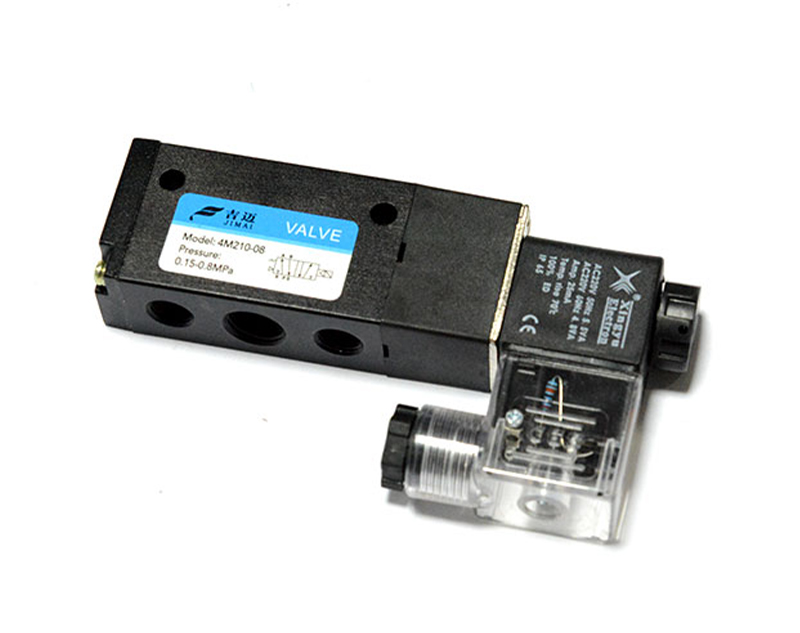

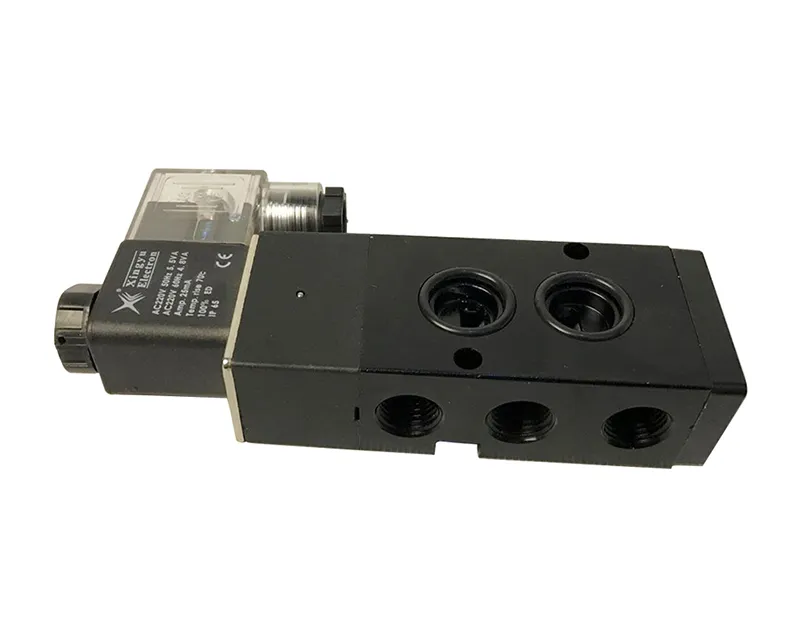

Pneumatic Air Solenoid Valve

Good tightness and sensitive reaction

Zhejiang Jimai Auto-Tech Co., Ltd. offers a pneumatic component known as a pneumatic air solenoid valve. This valve is characterized by its long service life, rapid working frequency, and dependable performance. A pneumatic air solenoid valve is a device that can be utilized to make adjustments to the medium's flow, speed, and direction, among other properties.

SEND MESSAGE

Product Description

There are two working mode for pneumatic air solenoid valve, one is single acting, another is double acting. Single acting type pneumatic air solenoid valve can automatically return to your set model when there is no air supply input. Also, it can mount with solenoid valve to achieve the remote control. In addition to having a pilot exhaust outlet, it is equipped with specialized microfilters that are meant to exclude contaminants from the air inside. In the meantime, the Jimai pneumatic air solenoid valve utilizes a thermosetting BMC overall coated coil. This coil possesses an IP65 protection level and is able to ensure a low temperature rise.

Product Features

Model: 4M Series

Working temperate: 0~60℃

Working pressure: 0.15-0.8MPa

Max. Operating Frequency: 5 Cycle / Sec

Good tightness and sensitive reaction

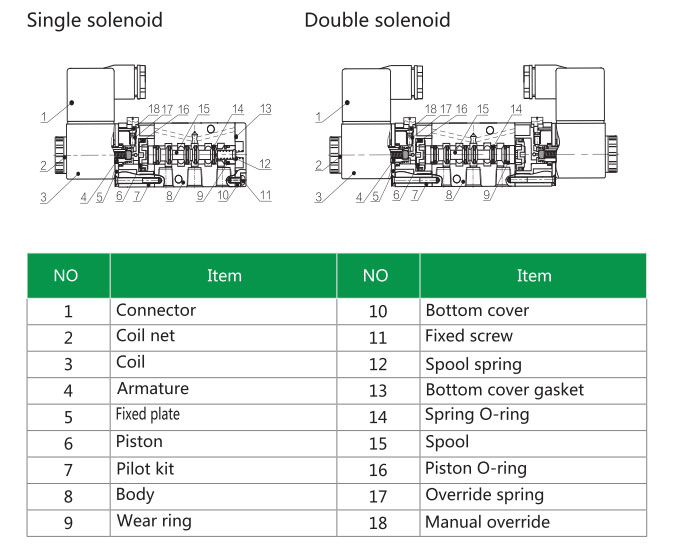

Double control solenoid valves have memory function

Special processing technology,long service of life, no need for extra lubrication

Can be directly mounted with actuators, ease of use.

Affiliated manual devices are equipped to facilitate installation and debugging

Several standard voltages are optional

Aluminum alloy valve body and rigid thread ensure the higher level of hardness

Parameters

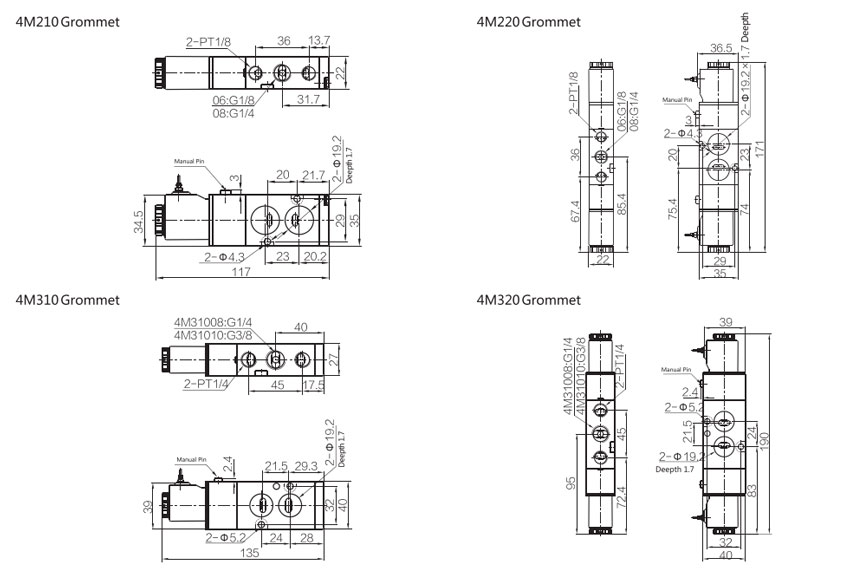

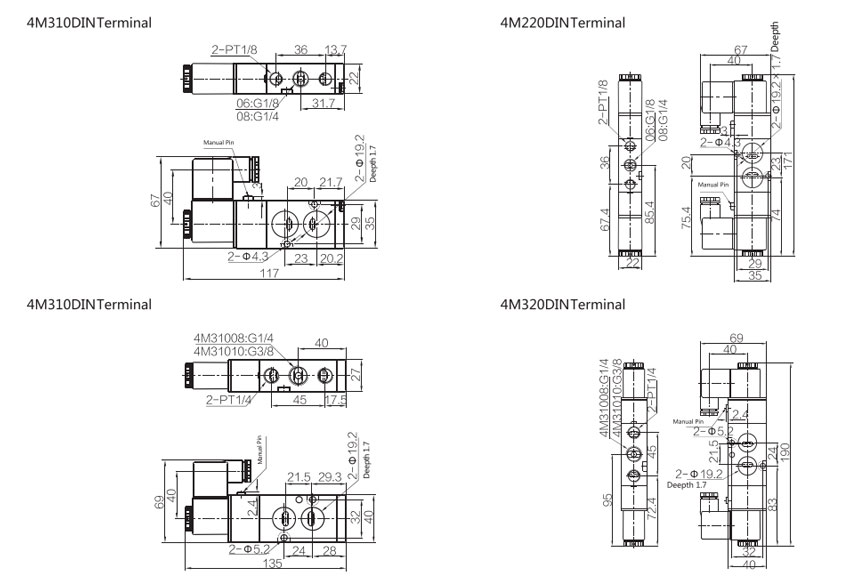

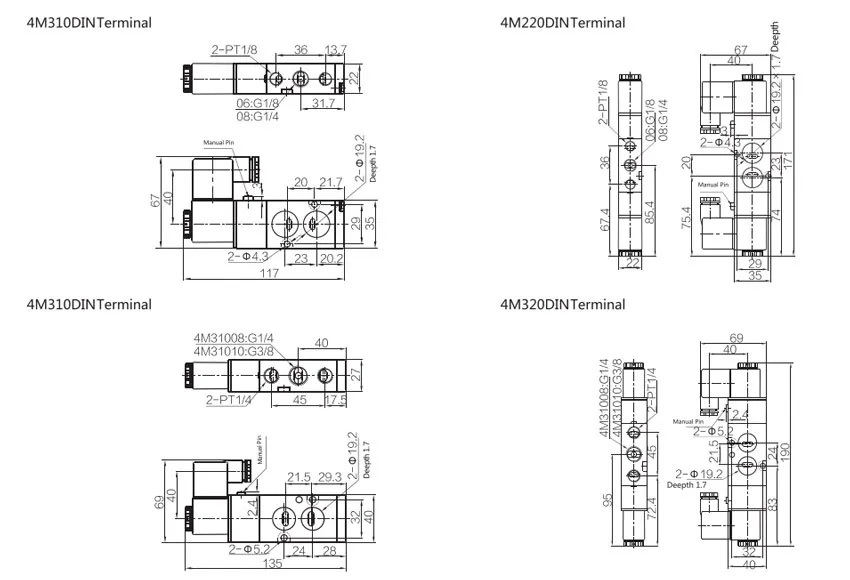

Model	4M210-06 4M220-06	4M210-08 4M220-08	4M310-08 4M320-08	4M310-10 4M320-10
Fluid	Air
Acting	Internal Piloted
*Port size	In=Out=G1/8	In=Out=G1/8	In=Out=G1/4	In=PT3/8 OUT=G1/8
Effective sectional area	14.0mm2 (Cv=0.78)	16.0mm2 (Cv=0.89)	25.0mm2 (Cv=1.40)	30.0mm2 (Cv=1.68)
Valve type	5 Port 2 position
Lubrication	Not required
Operating pressure	0.15~0.8MPa
Proof pressure	1.5MPa
Temperature	0~60℃
Body Material	Aluminum Alloy
Max.Frequency	5 cycle/sec		4 cycle/set
Weight	4M210:220g;4M220:320g		4M310:320g;4M320:400g
