Solid and compact design
ITS300 limit switch box from Zhejiang Jimai Auto-tech Co,.Ltd are typically used in connection with pneumatic actuators on valves that spin 90 degrees, such as pneumatic ball valves and pneumatic butterfly valves.
Product Description
These valves are able to give signals remotely and are typically used in conjunction with the ITS300 limit switch box. In addition to having an explosion-proof function, the ITS300 is suitable for use in working settings that are environmentally hazardous. The explosion-proof level of this product is Exd IICT6, which is capable of meeting the majority of uses. Additionally, our ITS300 limit switch box is fitted with SS304 screws, which are resistant to corrosion and rust, hence extending the product's capacity for service for an extended period of time. Customers have the option of selecting SS304 adjustable mounting brackets, which enable a single bracket to accommodate all connection hole distances. This type of bracket is not only straightforward to use, but it also saves customers the time and money that would otherwise be spent renewing brackets.
Product material
Enclosure Aluminium die casting and powder coating
SS316 screws for housing cover are optional
Indicator material: ABS/polycarbonate
Cam:polycarbonate
O-ring: NBR
Indicator cover: polycarbonate
Earth lug: Stainless steel
NAMUR Standard stainless steel shaft and bracket
Product Features
Model:ITS300 limit switch box
Protection Class: Weatherproof IP67
Explosion proof level: ExdII CT6
Solid and compact design

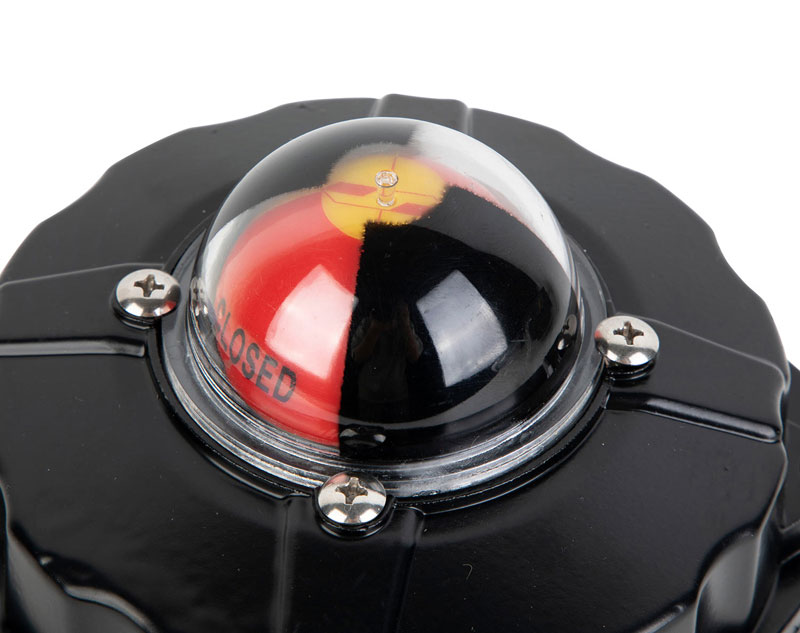

Position Indication: Close: Red, Open: Yellow
Optional switch: Omron switches / Honeywell switches
Connection: 2*NPT 1/2
Switches: Mechanical switch X2 ; Proximity sensor X2
Mounting bracket : adjustable mounting bracket
Able to easily adjust bracket length and height according to the NAMUR size
Parameters
|
Item |
ITS300 limit switch box |
|
Ambient temperature |
-20℃~80℃ |
|
External Coating |
Polyester powder coating(black) |
|
Cable Entries |
Two NPT 3/4’’ |
|
Terminal Strips |
8 points (0.08-2.5mm²) |
|
Operation mode |
Remote signal feedback |
|
Mounting Interface |
NAMUR |

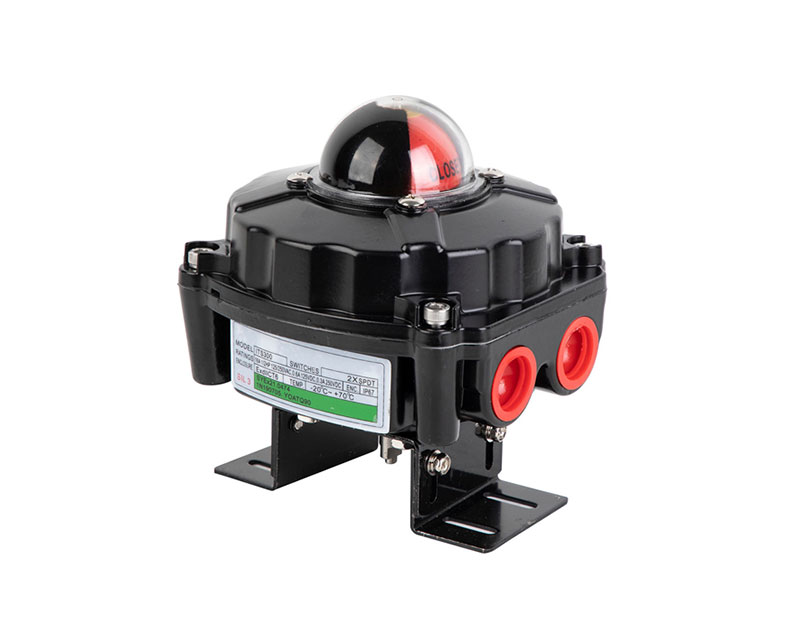

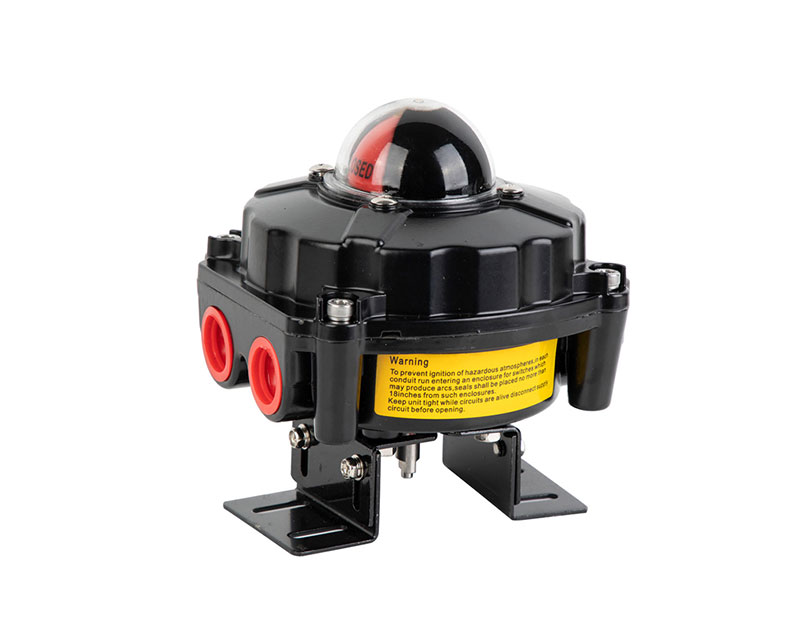

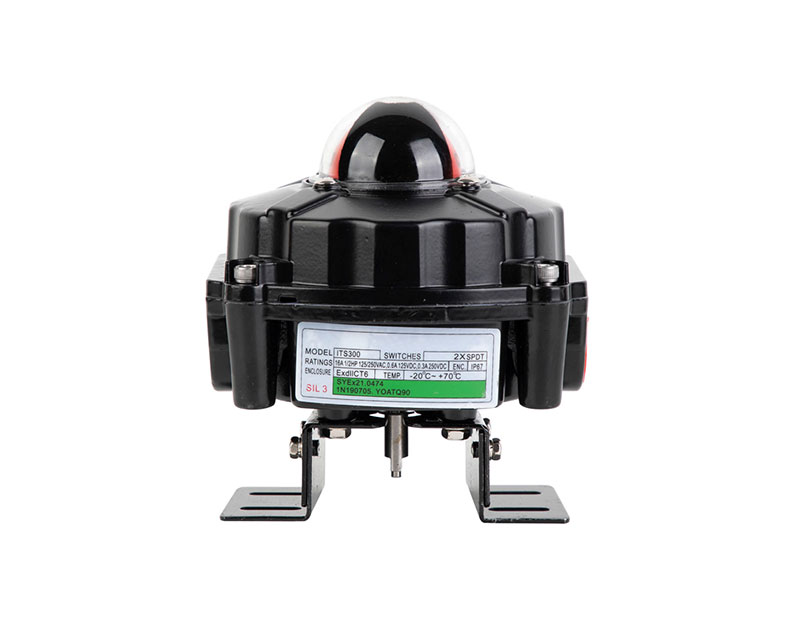

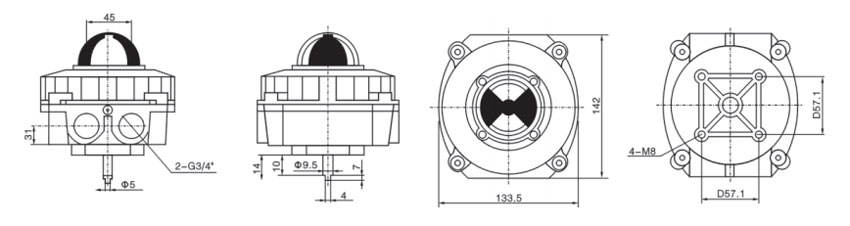

Outer Appearance

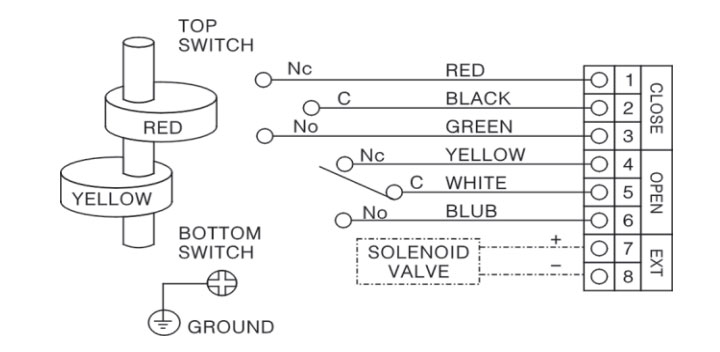

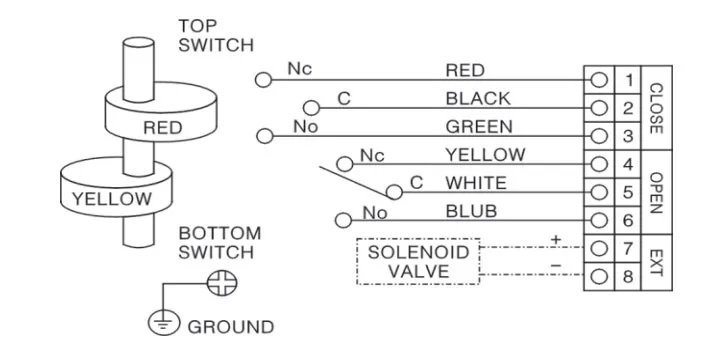

Wiring Diagram
